Lessons 4 and 5

The subject of the lessons

In these two lessons we are going to find a new way of representing complex numbers in the Gauss plane. Then, using Cabri, we'll find some interesting properties of this new representation.

Visualizza la nota didattica

The lessons begin

Exercise: use Cabri to represent in the Gauss plane the complex numbers 1+i and -1+2i. Get the sum of these two numbers with the usual rule and then represent this sum in the "Cabri plane". Show, using the software, that the "parallelogram rule" holds.

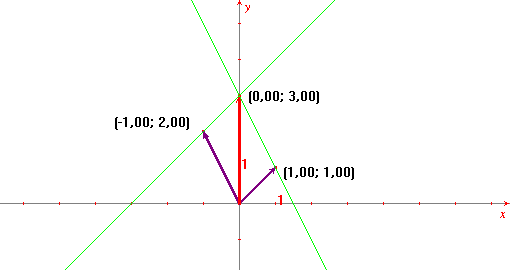

The vectorial sum of two complex numbers

Exercise: move the points (1,1) and (-1,2) and see how the point (0,3) varies.

Il tuo browser non visualizza le applet Java

Exercise: now erase the sum, calculate the product of the two vectors (using Cabri Calculator), represent it in the plane, measure the length of all the vectors and the angles between them and the positive x axis (in the counterclockwise direction). By moving the original vectors can you see some simple relation between their lengths and angles and the lenght and angle of the product?

Il tuo browser non visualizza le applet Java

Visualizza la nota didattica in italiano

We can conclude with the following rules:

The lessons end - Homework

Using Cabri  try to find a rule for the quotient of two complex numbers.

first published on april 04 2005 - last updated on april 04 2005
